Czl601 Chinese 0-100Kg Load Cell with Aluminum Alloy 130X22X30 and Manufacturing Date Code 2022.12.15

Series : single point

Features : 3kg-120kg

Mounting Type : screw installa

Description : IP65 waterproof 601, SC601 Load Cell

Manufacturing Date Code : 2022.12.15

Model Number : SC601

Type : Load Cell

Place of Origin : Guangdong, China

Brand Name : SNC

Use : PRESSURE SENSOR

Theory : Resistance Sensor

Output : Analog SENSOR

Item : SC601

Material : Aluminum alloy

Comprehensive error : ±0.02%

Excitation voltage : 9~12 VDC

Accuracy class : 0.03%F.S / 0.02%F.S

rated output : 2.0±0.15mV/V

Sensitivity : 0.0016 %RO/℃

safe over load : 150% RO

IP grade : IP65

application : electronic scale, table top scale, pricing scale, fore test equipment

Packaging Details : planar beam load cell 10kg for bench scales----10 units per box

Port : shenzhen, Hongkong, any port of China

Supply Ability : 10000 Piece/Pieces per Month planar beam load cell 10kg for bench scales

Price : $6/pieces 1-499 pieces

Contact Now

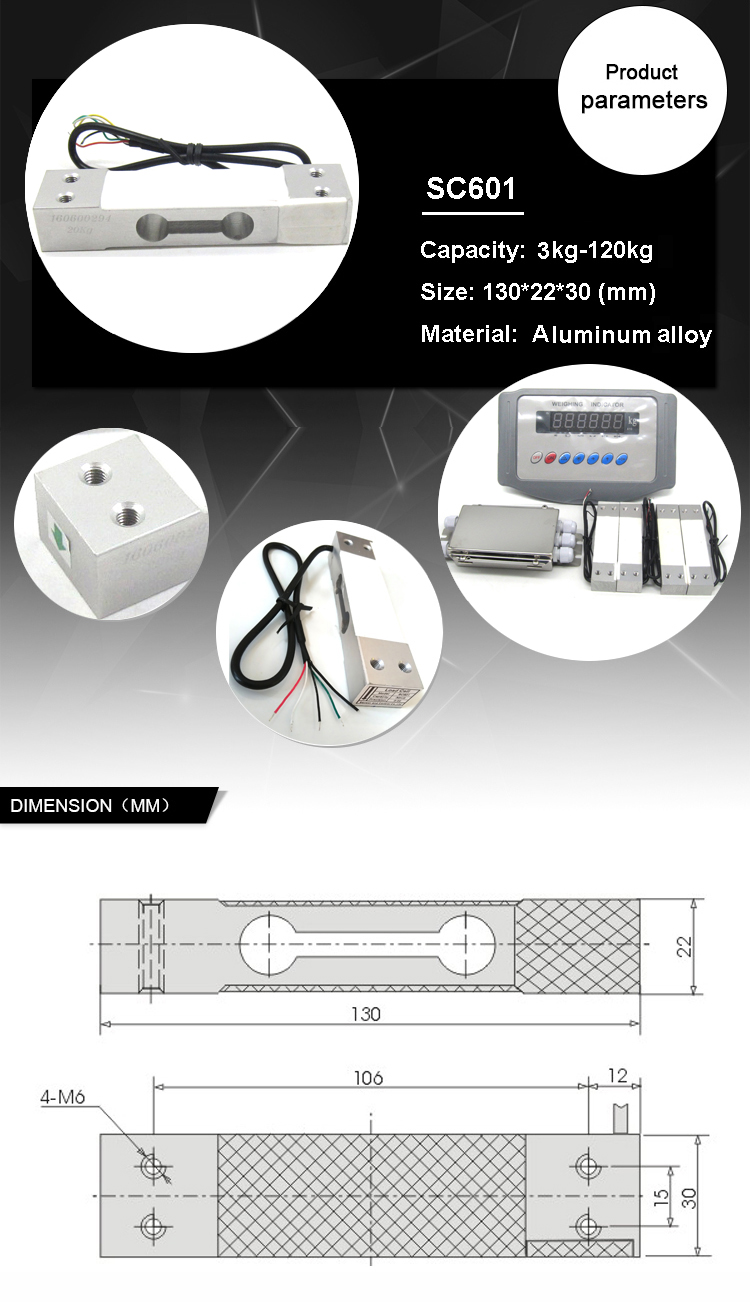

Czl601 Chinese Cheap 0-100Kg 130X22X30 Load Cell

Czl601 Chinese 0-100Kg Load Cell with Aluminum Alloy 130X22X30 and Manufacturing Date Code 2022.12.15

Product Description

Features:

1, aluminum alloy, hermetically sealed with glue to IP65,

2, Surface anodized and anti-corrosion, integral structure and easy installation.

3, Application: electronic top scale, floor scale and other weighing equipment.
It uses 4-core shielded cable (φ4×420mm). The length of the cable is adjustable according to customer requirement.

Parameters:

Application	Price computing scale, table top scale
Model	SC601
Capacity	3kg, 5kg, 6kg, 10kg, 15kg, 20kg, 30kg, 40kg, 50kg, 60kg, 100kg, 120Kg
rated output	2.0±0.15mV/V
Accuracy class	0.03%F.S / 0.02% F.S
maximum number of verification intervals	2000Nmax
Minimum loadcell cerification intervals	Emax/5000 Vmin
Combined error	≤±0.03% RO
Creep	0.003%RO/30min
Temp. effect on sensitivity	0.0016 %RO/℃
Temp.effect on zero	0.003%RO/℃
Zero balance	±1.0 %RO
Input resistance	402±6 ohm
Output resistance	350±3 ohm
insulation resistance	5000 MΩ(50V)
Recommended excitation voltage	10-15V
Compensated temperature range	-10-+40℃
operating temperature range	-35-+80 ℃
safe overload	150 %RO
Ultimate overload	200%RO
loadcell material	Auuminum
platform size	250x350 mm
Connecting cable	Φ4.2x350 mm
Method of connecting wire	Red- input+, black- Input-. Green- Output+, White- output -

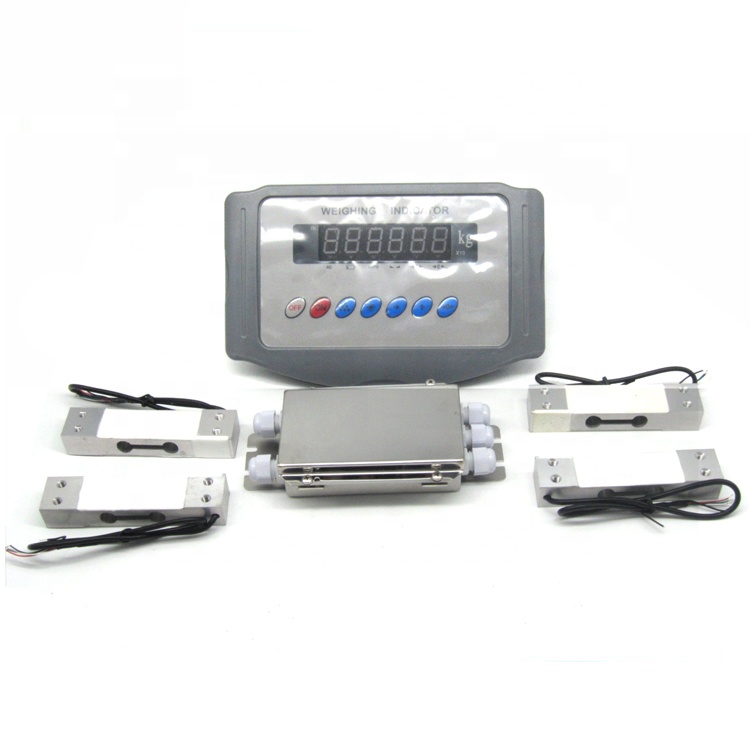

Accessories

Czl601 Chinese 0-100Kg Load Cell with Aluminum Alloy 130X22X30 and Manufacturing Date Code 2022.12.15

Application:

Company Information

Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.

Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.

Czl601 Chinese 0-100Kg Load Cell with Aluminum Alloy 130X22X30 and Manufacturing Date Code 2022.12.15

Packaging & Shipping

Czl601 Chinese 0-100Kg Load Cell with Aluminum Alloy 130X22X30 and Manufacturing Date Code 2022.12.15

FAQ

1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.

2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.

3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.

4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.

5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments

before shipping to our clients.

6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
